KRGWT01L – Mercedes Gelandewagen G Class (1979-2017) Slimline II 3/4 Roof Rack Kit / Tall – by Front Runner
3 x LASS105 – No 5 Leg 190mm (Pair) – by Front Runner 1 x RRSTM10 – Slimline II Tray – 1475mm(W) X 1964mm(L) – by Front Runner
Black epoxy powder-coated T6 aluminium 3CR12 Stainless Steel
Approximate Installed Weight 32kg (71lbs)

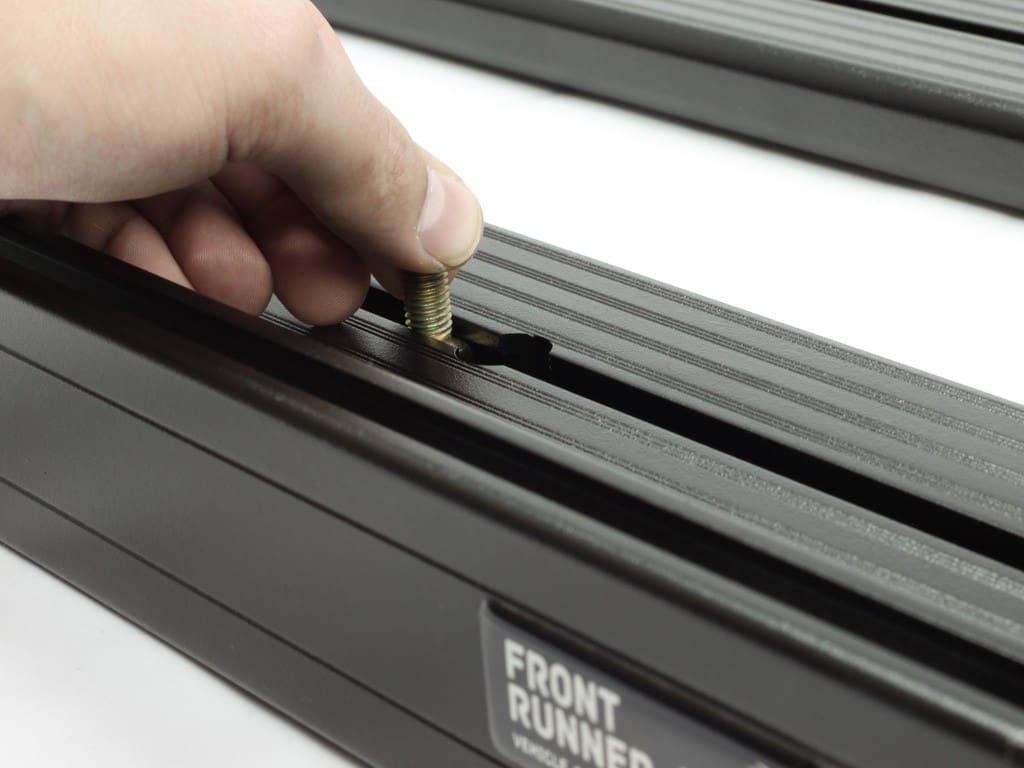

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Width 450mm (18)Length 1615mm (64)Height 140mm (6)
Weight 37.8kg (83.1lbs)

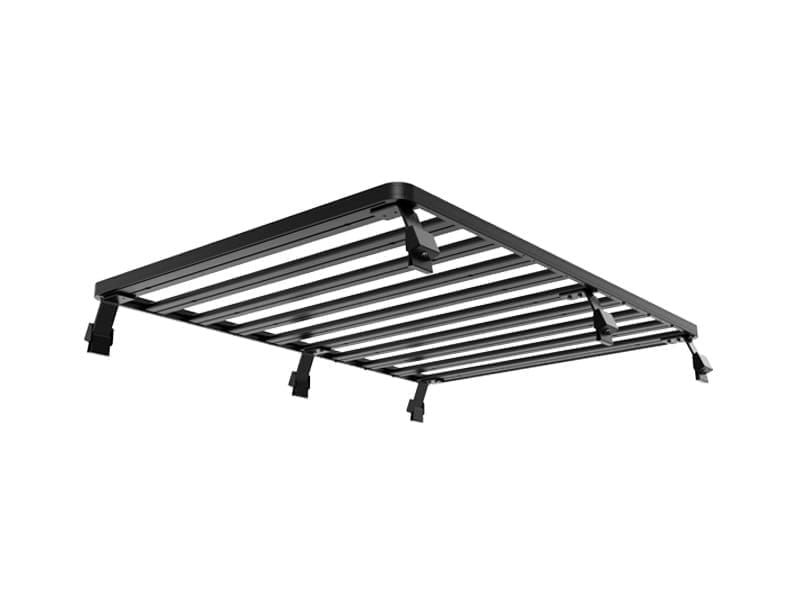

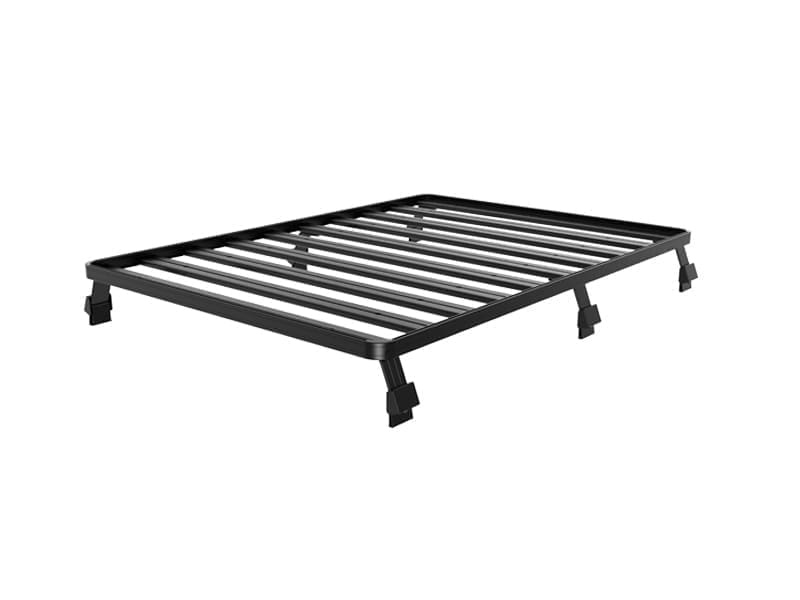

This 1964mm/77.3 long 3/4 size Slimline II cargo carrying roof rack kit for the Mercedes Gelandewagen G Class contains Slimline II Tray and Wind Deflector, as well as 6 Gutter Mount legs for mounting the Tray to the vehicle. This taller kit has space for mounting the Front Runner tables or other compatible accessories under the rack. It installs easily with no drilling required.
