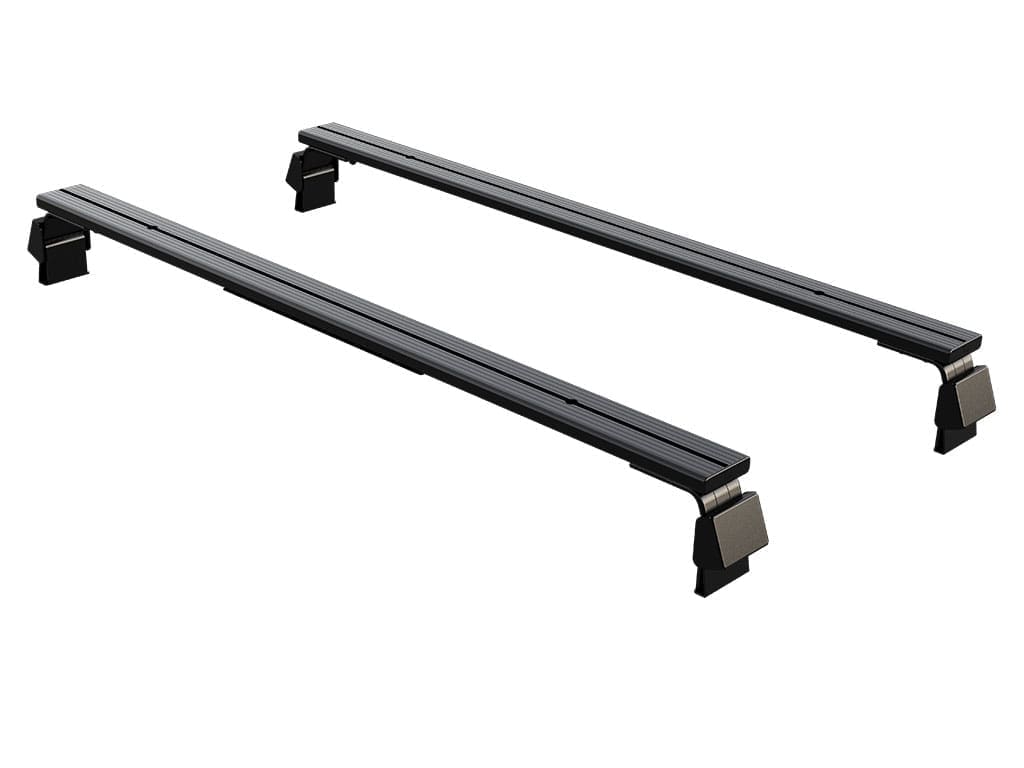

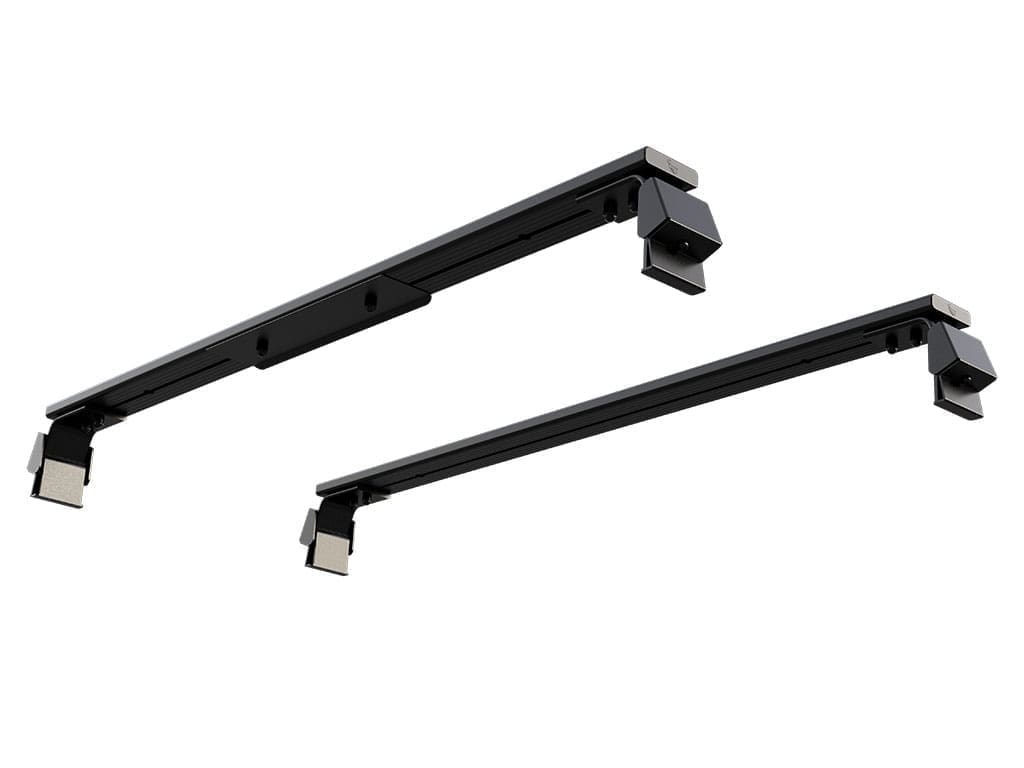

Suzuki Jimny (2018-Current) Load Bar Kit – by Front Runner

Description

KRSJ007 – Suzuki Jimny (2018-Curr) Load Bar Kit
Consisting of:
2 x LASS102 – No 2 Leg 130mm (Pair) – by Front Runner 1 x LBSK015 – Roof Load Bar Pair 1345mm(W) – by Front Runner 1 x WDLB001 – Load Bar Wind Deflector / 10mm – by Front Runner

Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 7kg (16lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8) to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8) to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width205mm (8)Length600mm (24)Height 75mm (3)
Shipping Weight:
Weight8.3kg (18.3lbs)
