This low-profile flat deck Slimsport rack has a load-carrying area of 1676mm (66″) L x 1175mm (46.3″) W.
The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket.
Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small – by Front Runner for most Front Runner side mount accessories (sold separately).

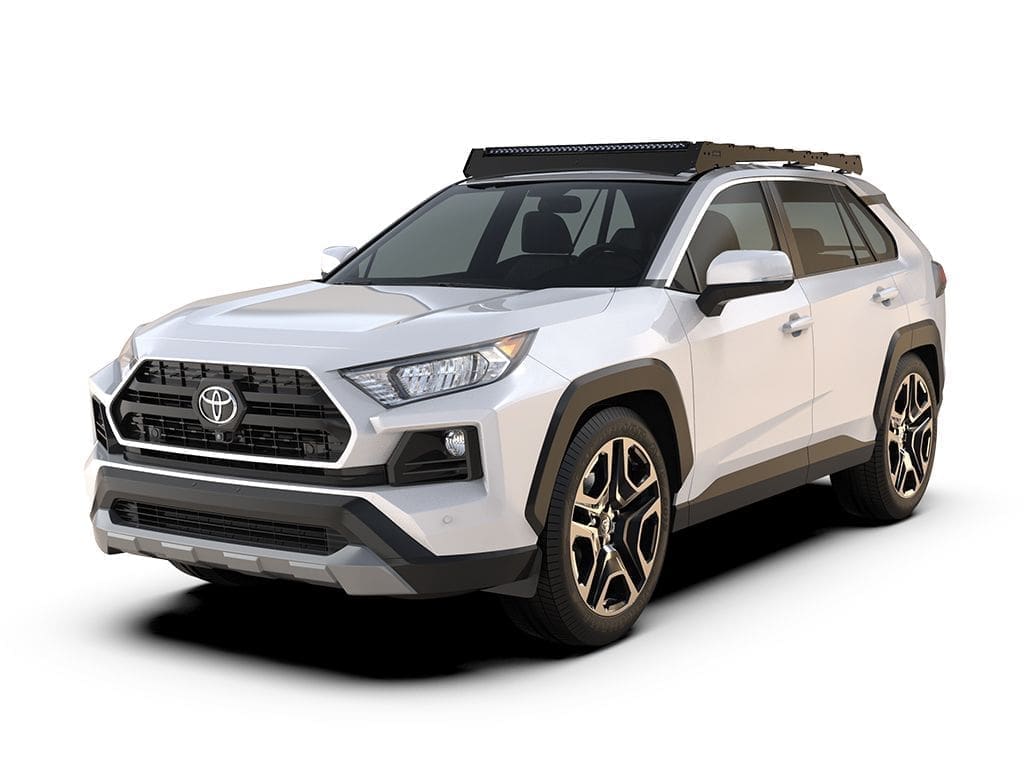

Included in the Toyota Rav4 (2019-Current) Slimsport is a 40″ cutout to allow the use of the 40″ LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately), and allows full operation of the moon roof.
Fitment guide and all mounting hardware included.
6″/T30 Torx Allen Key for Slimsport Rack is required for installation.
Note: Drilling is required for installation.
Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.
Please Note: Additional drilling is required for the RAV4 LE models.
1x KSTR001 – Toyota Rav4 (2019-Current) Slimsport Roof Rack
1x RRAC220 – Toyota Rav4 Slimsport Rack 40″ Light Bar Wind Fairing
1x RRAC971 – Protection Strip
Black epoxy powder-coated T6 aluminium
High strength steel
Assembled Rack Dimensions: 1676mm (66″) L x 1175mm (46.3″) W x 135mm (5.3″) H
Approximate Installed Weight: 33.94kg (74.82lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60 mm-70 mm (2.4″-2.8″) to the highest point of your roof.
Width: 330mm (13″)
Length: 1705mm (67″)
Height: 220mm (9″)
Weight: 34kg (75lbs)
