Auxiliary Fuel Tank 60L – Ford Ranger T6.2 (2022 – Current)

Description

• An additional fuel capacity of 60l is suitable for Diesel.
• Designed to be installed in addition to the original factory fuel tank.
• Mounts to the back of the chassis.
• The spare wheel position is lowered by approximately 20mm.
• Made of high-strength steel and sealed with a satin black chip-resistant coating for protection and to dissipate heat.
• Fills via the existing filler cap.
• Fuel is transferred between the existing and auxiliary tanks via a gravity feed.
• Supplied with all installation hardware and fitting instructions.
• Drilling is required for installation.

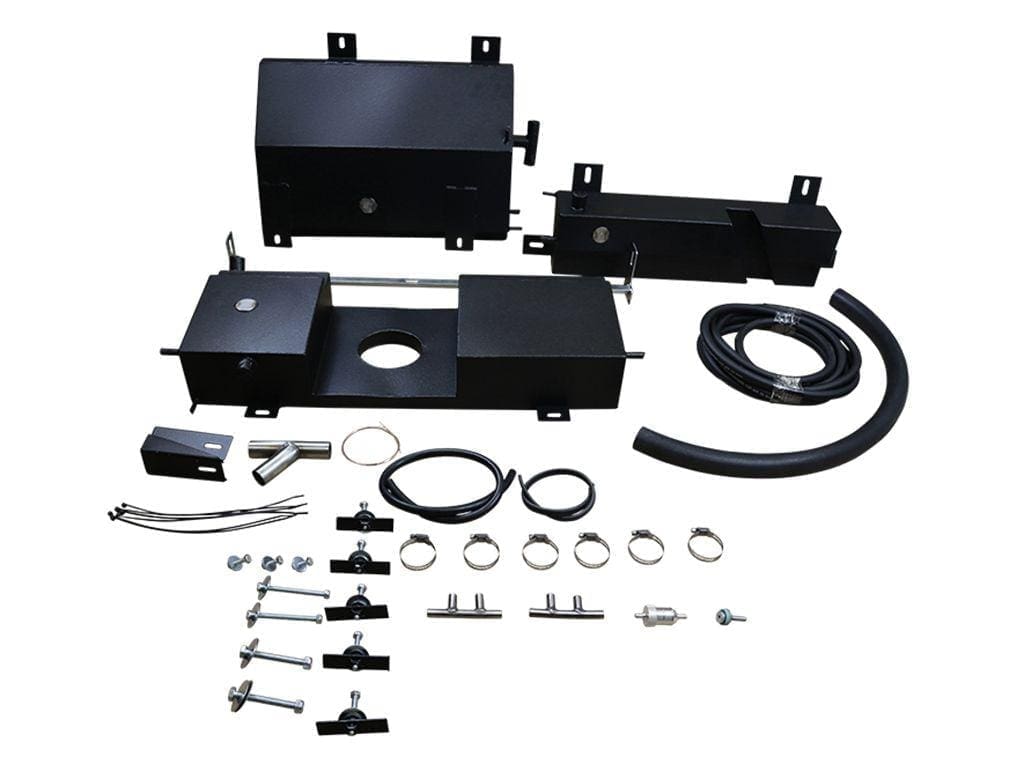

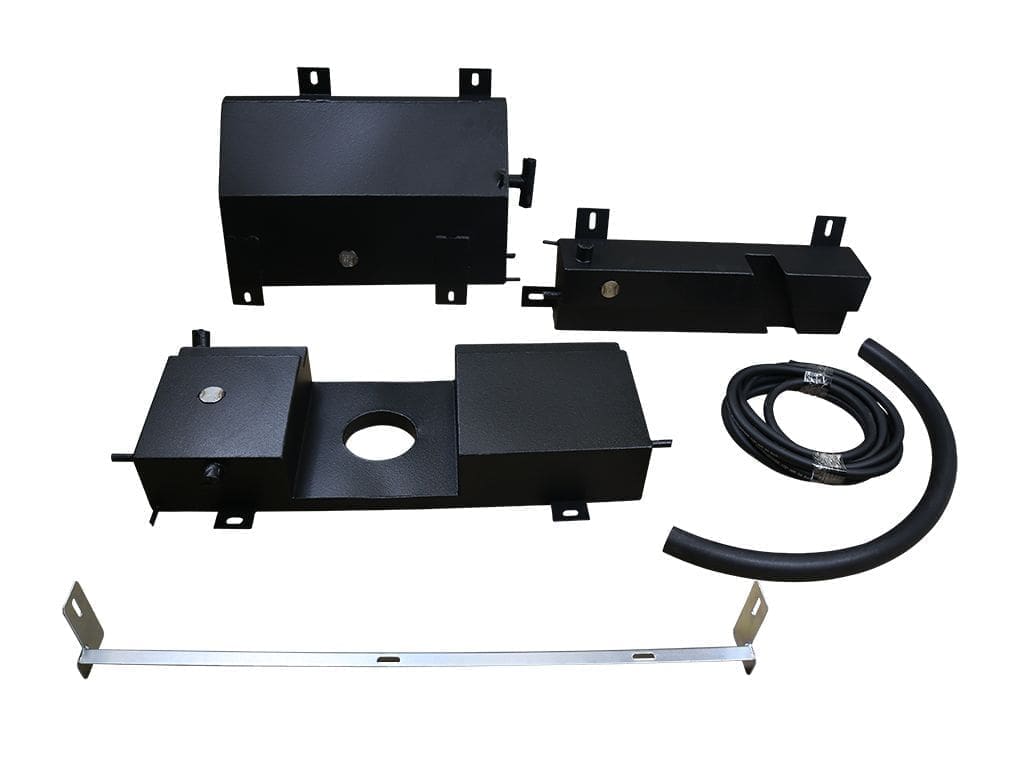

Consists of:
3 x Fuel Tanks
1 x Front Bracket
2 x Rear Brackets
1 x Hose Set
2 x Fuel Lines

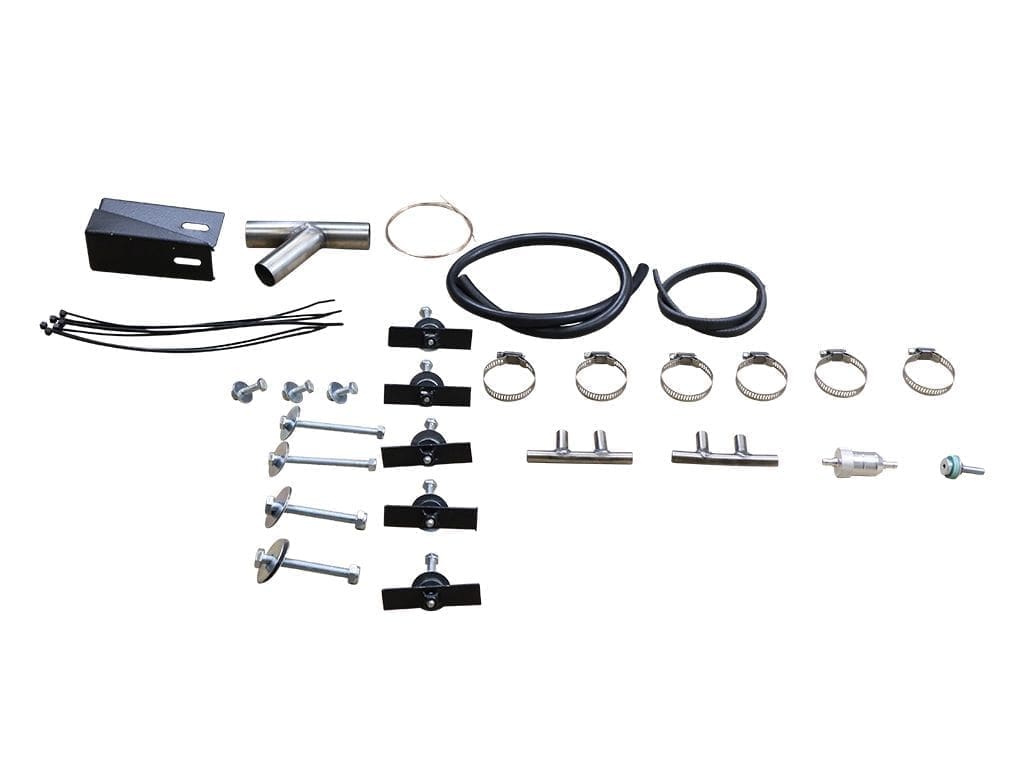

Installation Hardware
Fitting Instructions

Materials used:
Stainless steel tank with a black stone chip finish

Estimated Overall Product Dimensions:
1120mm (44.1″) L x 900mm (35.4″) x 220mm (8.7″) H

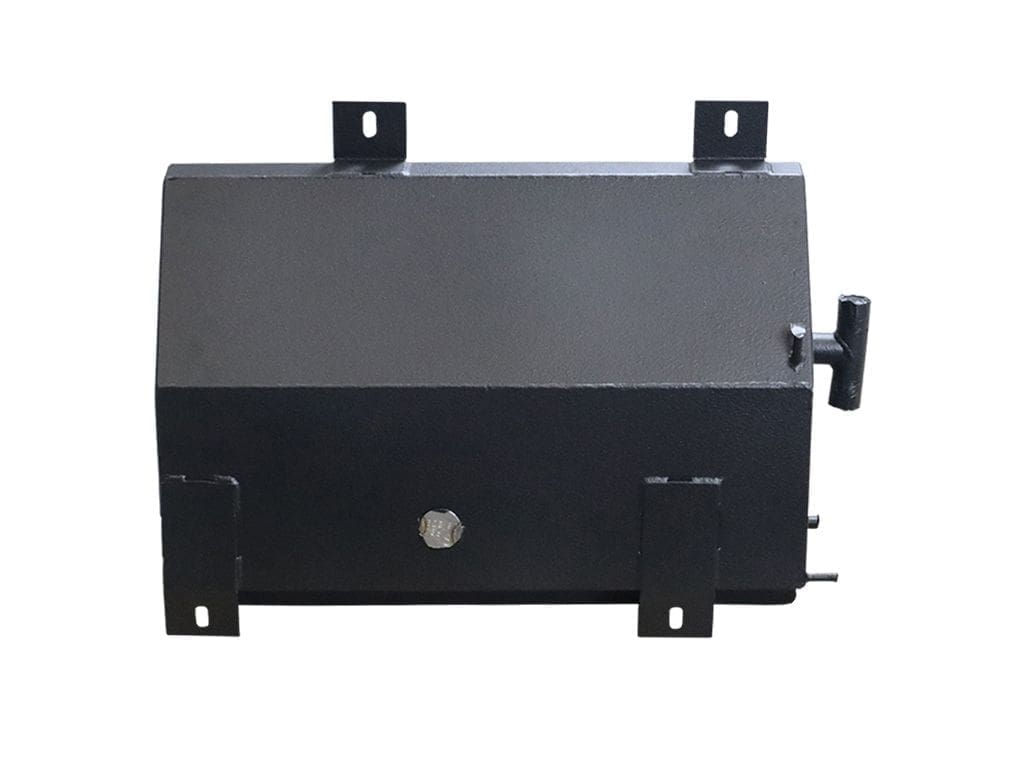

Front Tank Dimensions:
600mm (23.6″) L x 400mm (15.8″) W x 220mm (8.7″)

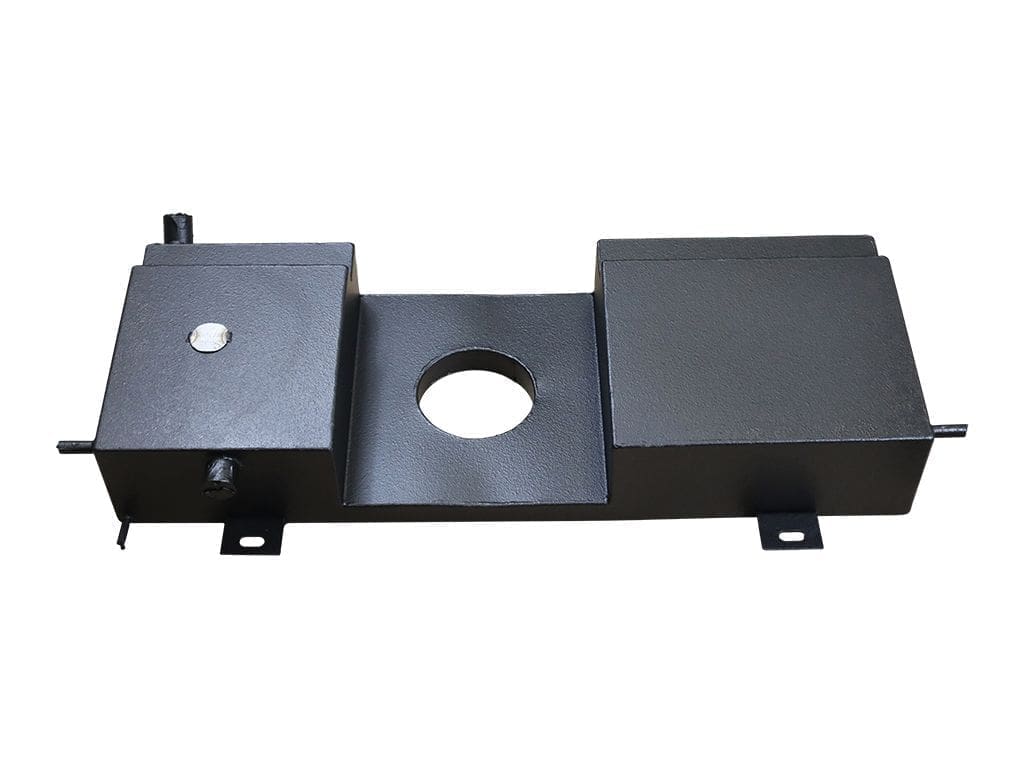

Middle Tank Dimensions:
300mm (11.8″) L x 800mm (31.5) W x 140mm (5.5″) H

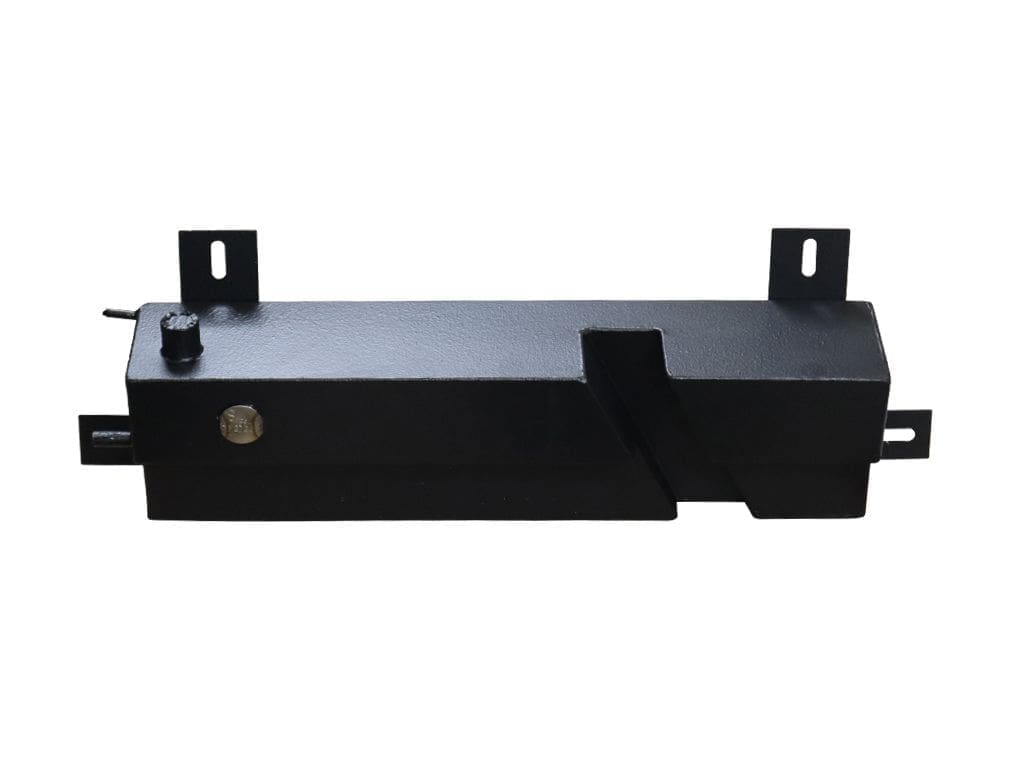

Back Tank Dimensions:
650mm (25.6″) L x 180mm (7.1″) W x 140mm (5.5″) H

Weight:
30kg (66.1lbs)
